OBDStar – MT501 – Automotive Test Bench Platform

Description

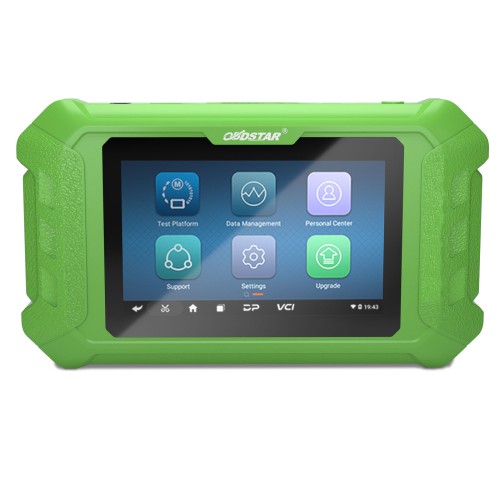

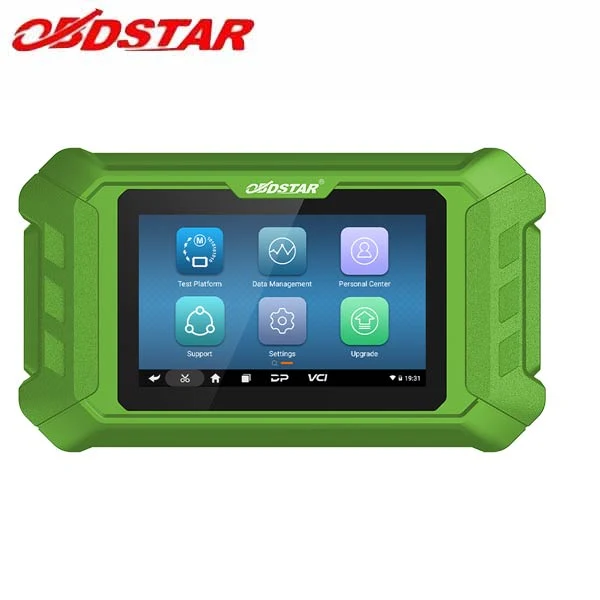

OBDSTAR MT501 Bench Test Platform

MT501 is an automotive test platform by BENCH newly developed by OBDSTAR, which is multi-function in one, including dashboard power on, ABS power on, gear lever power on, A/C(air conditioning) panel power on and more.

It adopts latest 3.0 APK operating platform, is a good helper for automotive maintenance technicians.

Development Background

Nowadays, many dashboards, audio, gear levers on cars are powered on through CAN BUS communication to make their hosts working. So their hosts fail to be powered on when technicians repair or detect them on the platform due to without CANBUS communication.

Therefore, OBDSTAR developed MT501 to make them powering on without CANBUS communication on the platform. Meanwhile, it integrated multifunction in one making repairing easier and saving a big cost for technicians.

Functions

1. New android 5.1.1 operation system;

2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

3. Wi-Fi connection to the internet, one-click software upgrade;

4. Intelligent search, with help guide, easy to use.

Advanced Functions

1. Support dashboard power on for below brands:

• AUDI
• BMW
• BENZ
• DODGE
• FORD
• JAGUAR
• LAMBORGHINI
• LAND ROVER
• PORSCHE
• ROLLS-ROYCE
• VOLKSWAGEN
• VOLVO

  …

2. Support BMW G series A/C panel power on

3. Support LAND ROVER/JAGUAR gear lever power on

4. Support BENZ ABS power on

More power on functions are under development…

OBDSTAR MT501 Recent Update
April 2025
Add Audi Q3 EA02C00030 dashboard drive.

March, 2025
Add Audi A6L C8 instrument drive wiring diagram
Add below Chrysler audio modules
P0564403AI
P0564879AG
P56038646AK
P05091508AF

Oct. 2024
Dashboard V30.22
Add instrument driver function for BMW G chassis

Aug. 2024
Add compressor drive function for Volvo S90
Add Benz S400 wiring diagram

June 2024
Add new type of Porsche instrument boot drive
Add the wiring diagram of VW’s full LCD instrument
Add driver function for Ford SYCN3 audio module and Roewe I5 audio module
Add drives for Land rover and Jaguar push-button shift mechanisms and some knob-type shift mechanisms
Add air conditioning panel boot drive function for Audi A5, Buick GL8, add Audi A6 wiring diagram

May 2024
Add new type of Audi Q7 instrument boot drive

April 2024
Add Audi Q7 pinout

Specification:

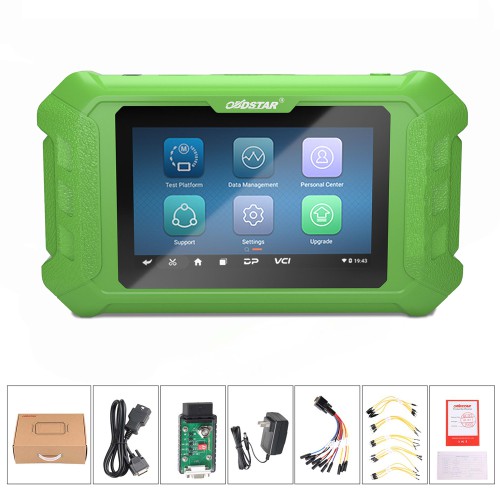

Package List:
