Autel – MaxiSYS – Ultra – Automotive Diagnostic Tablet With Advanced MaxiFlash VCMI / 2 years Update + MSOAK – Oscilloscope Accessory Kit – For The MSULTRA, MS919 And MP408

Autel – MaxiSYS – Ultra – Automotive Diagnostic Tablet With Advanced MaxiFlash VCMI / 2 years Update + MSOAK – Oscilloscope Accessory Kit – For The MSULTRA, MS919 And MP408

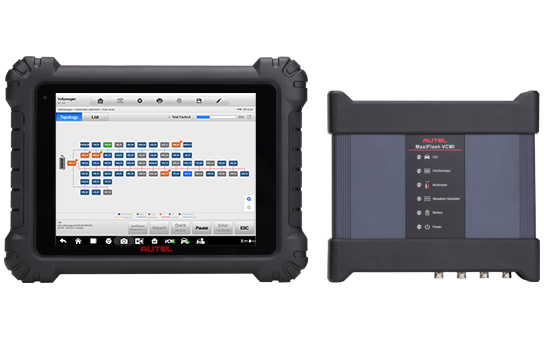

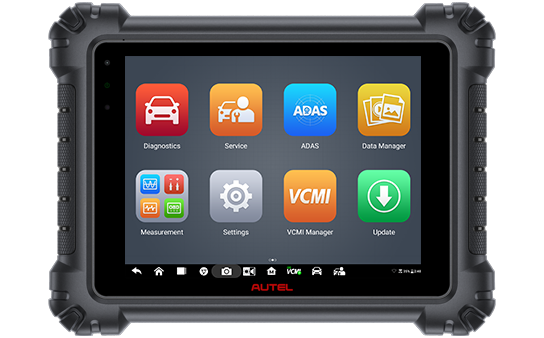

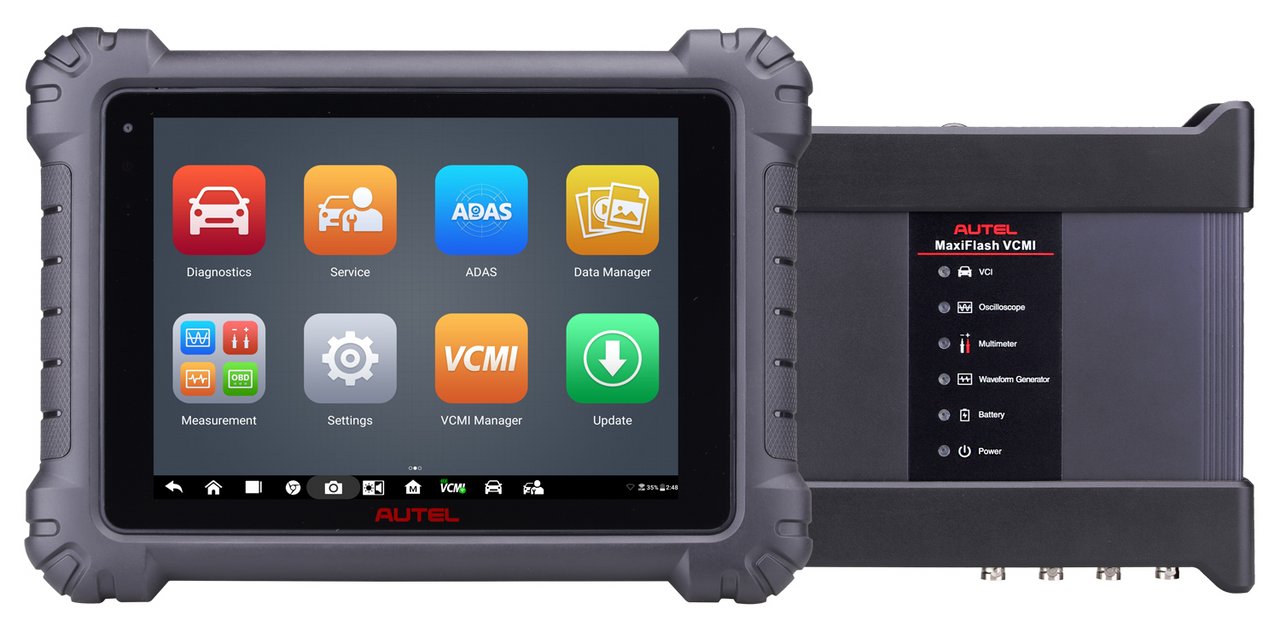

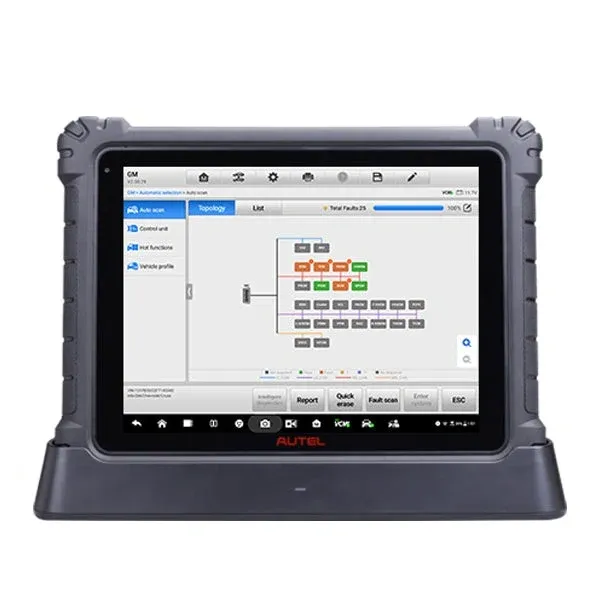

The MaxiSYS Ultra is Autel’s most ambitious diagnostics tablet to date, featuring a 12.9-inch touchscreen Android-based tablet powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 256GB built-in memory and features the MaxiFlash VCMI, a 5-in-1 communication and testing tool providing wireless vehicle communications between the vehicle and tablet and supporting the latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The VCMI also functions as a 4-channel oscilloscope, waveform generator, multimeter and CanBUS tester. The Ultra offers the most advanced approach to vehicle diagnostics, service and repair with its dynamic module topology interface for supported vehicles, and coding and adaptation capabilities. Utilize Remote Expert to contract with expert programmers and diagnosticians with OE tools and subscriptions for module programming, ADAS calibration, and gateway access. The Ultra features a rechargeable Lithium battery proving 8 hours of continues use, a convenient docking station and front and rear cameras.

• Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercars
• Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
• Automatic system and software updates with real-time push message notifications via internet
• Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Technical Specs:

• Large 12.9’’ Touchscreen (2732 x 2048) / Android 7.0
• 2.3GHz + 1.7GHz Octa-core Processor / 256GB Memory
• Advanced VCMI 5-In-1 Device: VCI, Oscilloscope, Multimeter, Waveform Generator, CAN BUS Check
• Oscilloscope Preset Guided & Component Tests / Waveform Library
• New VCI Protocols: D-PDU, DoIP/CAN FD, Mega CAN
• Split Screen Multi-Application Function / Dual Wi-Fi Connection
• Dynamic Module Topology interface with Color Coded All System Status Screen (on supported vehicles)
• Performs Coding and Adaptations
• Cloud-based Report Management
• Remote Expert-ready: contract with expert programmers and diagnosticians with OE tools and subscriptions for module programming, ADAS calibration, and gateway access.
• ScanVIN: Barcode or Text Recognition with Camera
• Secure Gateway Access: Authorized FCA SGM Access with AutoAuth Account
• Includes Docking Station, Cables, Scope Connectors, Carrying Case, 1YR Warranty & Software Subscription
• Enhanced Diagnostic Reports: PreSCAN & PostSCAN
• 18000mAh – 8hrs Continuous Use / 16MP Rear Camera & 5MP Front Camera

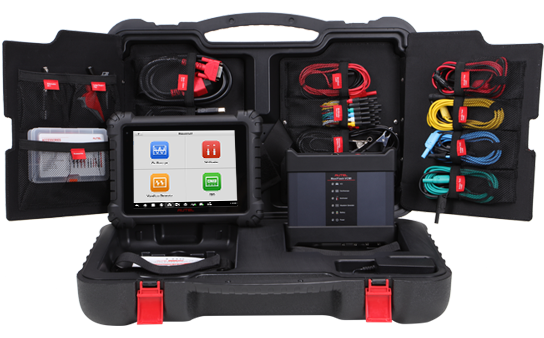

MaxiSYS Ultra Includes:

• Main Unit
• MaxiFlash VCMI
• Main Cable V2.0
• USB 2.0 Cable V2
• AC/DC Adapter(12V)
• Cigarette Lighter
• Light Fuse 6x30mm 2 PCS
• Clipper Cable
• Scope Test Lead 4 PCS
• Multimeter Test Lead 2 PCS
• Secondary Ignition Pickup 2 PCS
• Attenuator 20:1 2 PCS
• Breakout Lead 4×6 PCS
• Multimeter Probe 1×2 PCS
• Flexible Back-pinning Probe 2×2 PCS
• Back-pinning Probe – Red/Green/Blue/Yellow/Black 1×5 PCS
• Back-pinning Probe Screw 2 PCS
• Back-pinning Probe Replacement Needle 20 PCS
• Small Crocodile Clip 2×2 PCS
• Large Dolphin Clip 1×2 PCS
• Quick Reference Guide
• Packing List
• Soft Cloth
• Tool Box 177 x 102.5 x 23.5 mm
• Carrying Case 687 x 170 x 470 mm

Autel Key Cutting and Programming Machines are made for use in the North Amercian (U.S.A., Canada, Caribbean Islands) and Carribean Regions (Mexico, Guatemala, Belize, El Salvador, Honduras, Nicaragua, Costa Rica, Panama ). They are not intended to be used outside these regions and some models may have region locks on certain software functions and hardware may not be compatible with regional infrastructure. If you intend to purchase this for use outside of the specified regions you do so at your own risk. The manufacturer will refuse the warranty claims and may refuse software support if it is determined being used outside of the designated region. UHS Hardware has the right to refuse sale of this product outside its designated region

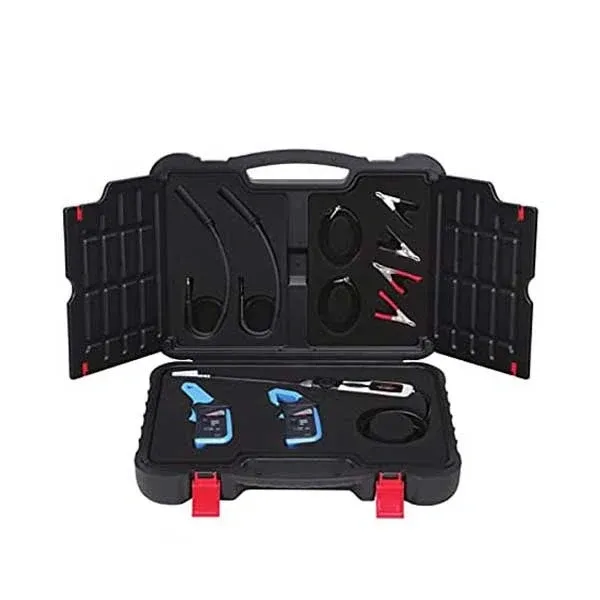

The MSOAK, compatible with the MaxiFlash VCMI included with the MSUltra and MS919, and the MP408 4-channel oscilloscope (sold separately), The current clamp measures a maximum current of 65A with a frequency up to 20 KHz. It works with jaws that open to allow clamping around an electrical conductor. And the 650A AC/DC current clamp measures a maximum current of 650A with a frequency up to 400 KHz. And the COP Probe can catch the ignition waveform of automobile engine easily.

Includes:

• 65A AC/DC Current Clamp
• 650A AC/DC Current Clamp
• Coil on Plug Probe
• HT Extension Lead (2pcs)
• Battery Clip (2pcs)
• Molded Carrying Case
